BLACK & DECKER 4011 TYPE 1
2 Stator
4 Carbon brush 230V (included in kit 1006269-00)
4 Carbon brush 230V (set of 2 pieces) (replacement code 445861-13)
5 Brush holder spring
6 Ring
7 Switch
8 Network cable
8 Network cable (EURO)
8 Power cable for grinding machine Black & Decker 4011 TYPE 1,4011 TYPE 2,PL52 TYPE
10 Bearing
11 Screw
12 Screw M3.5x13 T15
13 Screw
15 Bearing (replacement code 330003-25)
15 Bearing (replacement code 330003-64)
17 Screw M3.5x45 T15
20 Connector
21 Network cable insulator
22 Network cable clamp
24 Cover
25 Support leg
26 Base
27 Support plate
28 Clamp
31 Seal
32 No longer issued
34 Terminal assembly with wire
35 Cover
36 Nut
37 Printed circuit board
38 Terminal
39 Screw M4x19 T20
40 Screw M4.55x13 T20
846 Grinding plate
847 Dust bag

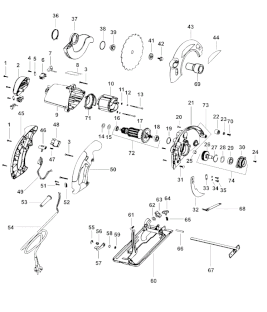

Circular saw diagram BLACK & DECKER CD601 TYPE 1
1 Screw
2 Carbon brush cover
3 Screw
4 Screw
5 Clamp
6 Brush holder
7 Carbon brush 230V
8 Factory plate
9 Stator housing
10 Stator
11 Washer
12 Spring washer
13 Screw
14 Ring
15 Washer
16 Bearing
17 Rotor (Anchor)
18 Bearing
19 O-ring
20 Screw
21 Gearbox housing
22 Rubber limiter
23 Washer
24 Screw
25 Bearing
26 Gear shaft
27 Retaining ring
28 Spring washer
29 Bearing
30 Gearbox housing cover
31 Bolt
32 Spacer knife
33 Shield
34 Spring washer
35 Screw
36 Spring
37 Lower protective casing
38 Retaining ring
39 Internal flange
41 External flange
42 Cutting disc bolt
43 Casing cover
44 Label
45 Handle (left)
46 Lever lock
47 Spring
48 Switch
49 Wire
50 Handle (right)
51 Screw
52 Cable clamp
53 Network cable insulator
54 Network cable (EURO)
54 Network cable
55 Clamp
56 Nut
57 Lever lock
58 Spring washer
59 Washer
60 Sole
61 Screw
62 Washer
63 Wing nut
64 Handle
65 Spring
66 Cylindrical pin
67 Ruler guide
68 Wrench
69 Vacuum adapter
70 Screw
71 Deflector
72 Rotor (Anchor) (L-174 mm, D-44 mm, 8 teeth, tilt to the right)
73 Gear housing
74 Gearbox assembly
BLACK & DECKER 5932 TYPE 1 angle grinder
1 ANCHOR 220/240 V
1 NO LONGER PRODUCED GB 115V
1 ARMATURE 115V
2 Stator
2 STATOR 115V GB 115V
2 STATOR 230V
2 STATOR IE-GB 240V
2 EXCITATION WINDING
3 UNLOCKING THE SWITCH
3 UNLOCKING THE SWITCH
3 NO LONGER IN PRODUCTION AU-NZ (5932 ONLY)
4 Carbon brush 230V
5 NO LONGER PRODUCED AE 115V
6 COLLAR
9 Internal flange DeWalt
10 Nut M6 UNI 5587
14 NO LONGER PRODUCED
15 Screw M6
21 Intermediate ring DeWalt
25 Clamp
25 CLAMP SA
27 Bearing
28 Seal
29 ARMATURE 200V
30 O-ring
31 Flange
32 Intermediate ring
33 Bearing 6000 T1XDDW
34 Bushing
35 Side handle
37 Deflector
38 RING BRUSH CROSS-BAR ASSEMBLY
41 NO LONGER PRODUCED
42 Cover
42 Cover
43 Shock absorber
44 Network cable insulator
44 POWER CORD PROTECTION IE-GB 240V
45 Screw
46 Screw
47 Screw
48 Network cable clamp
49 Open-end wrench
50 Carbon brush 230V
51 Wrench 4 mm A/F HEXx70 mm extended DeWalt
51 Wrench 4 mm
60 Network cable insulator 11.6
60 Network cable insulator 13.6
